1972 Datsun 240Z Restoration: The Saga Continues

img_0032

It’s been a while since we last heard from this car, so it’s overdue for a progress update! Lots of work has been completed on this build, with a little bit left to go, so let’s see where we’re at!

img_0035

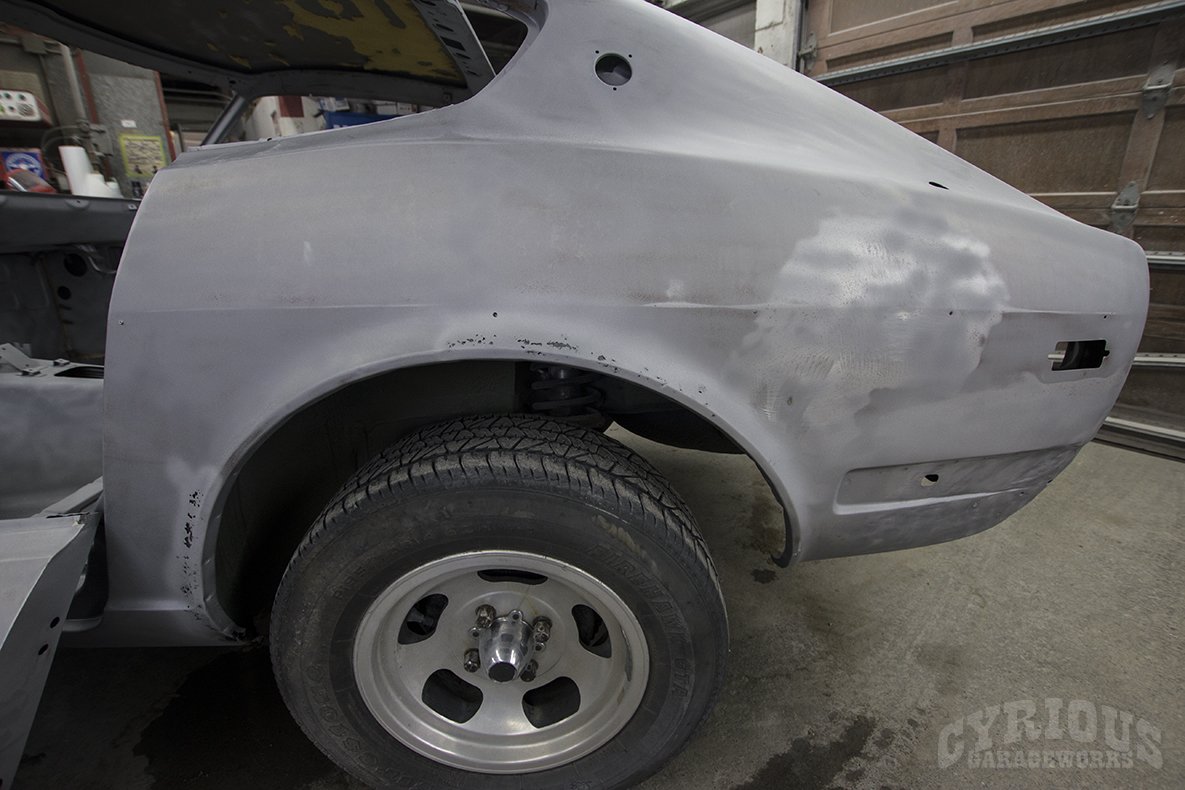

Our last post about this build really served as more of an introduction to the car itself before any work had been done, so we’ll go back in time a bit to cover some of the work that’s been done since then! After stripping all of the parts and interior from the car, the next step was to take the car for sandblasting and see what kind of secrets it was hiding. Overall, the car was decently clean as was expected, so our efforts of searching the southern states for a clean car were definitely justified. That being said, the car wasn’t 100% clean as we had hoped, although we were expecting for there to be a few problems. One of the main issues that arose after the sand blasting was that the car had clearly been in a bit of a fender bender at some point, and the panel was hammered out and repaired with body filler so that it looked okay on the surface. Knowing how important it would be to have the original dimensions of the car, this corner would require a lot of work to repair the damage so that the bumpers and panels match up perfectly.

img_0055

The front end had also seen some kind of action in the past, with some minor damage to go along with the slight crumpling in the rear. Many of the Z cars that we looked at had similar damage, it’s really a wonder that any of these cars managed to survive the 70s, since it appears that many of their owners maybe had a bit too much fun driving them. The front gaps were fairly good from the beginning, so it’s likely that this damage was never tremendously significant, but enough that it definitely left some tell tale signs.

img_0050img_0045

Overall, the body of this vehicle was in pretty good condition. There were some bits of wear and tear that are typical of a car that is 40+ years old, such as the worn out fender openings, as well as some dents and dings. The car was likely stored someplace with a window open, as there was an odd spot of rust on the driver’s side floor. Compared to what’s left of an Eastern Canadian 40 year old car though, this one was mint, so we definitely were glad to have gone south of the border to purchase this one.

img_0077The car received a coat of dark primer for a couple of reasons. The first is to inhibit any surface rust from forming on the bare metal after sand blasting. The second reason is to make it easier to spot any imperfections in the body that will be needing attention.

img_0117img_0146

img_0193

img_0229

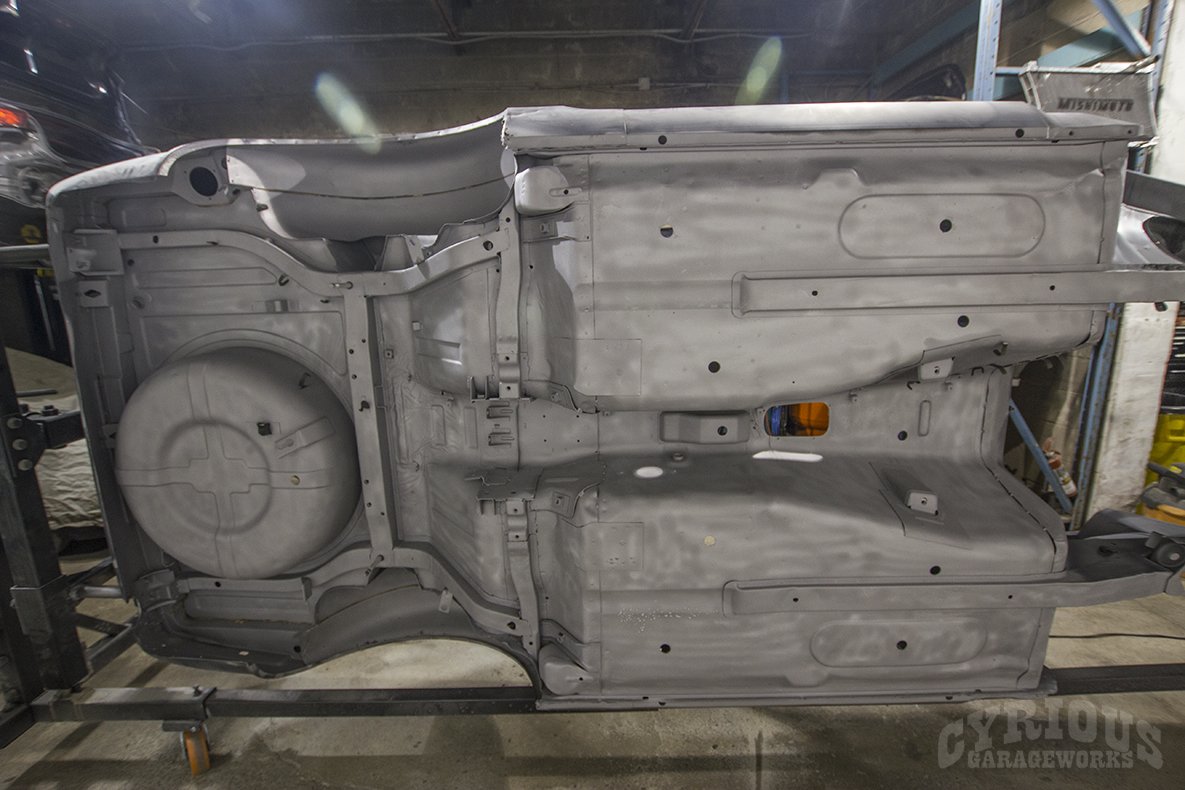

img_0240img_0242Restoration and reinforcement is under way! The ugly USDM side marker lights need to go, of course, along with all of the rest of the body work that must be done. As you can see, the chassis was stitch welded to add a bit of rigidity to the body. In many cases when it comes to restoring a car, stitch welding the chassis is totally unnecessary, but it was decided that it wouldn’t be a bad idea to do it on this car because…

img_0244img_0247

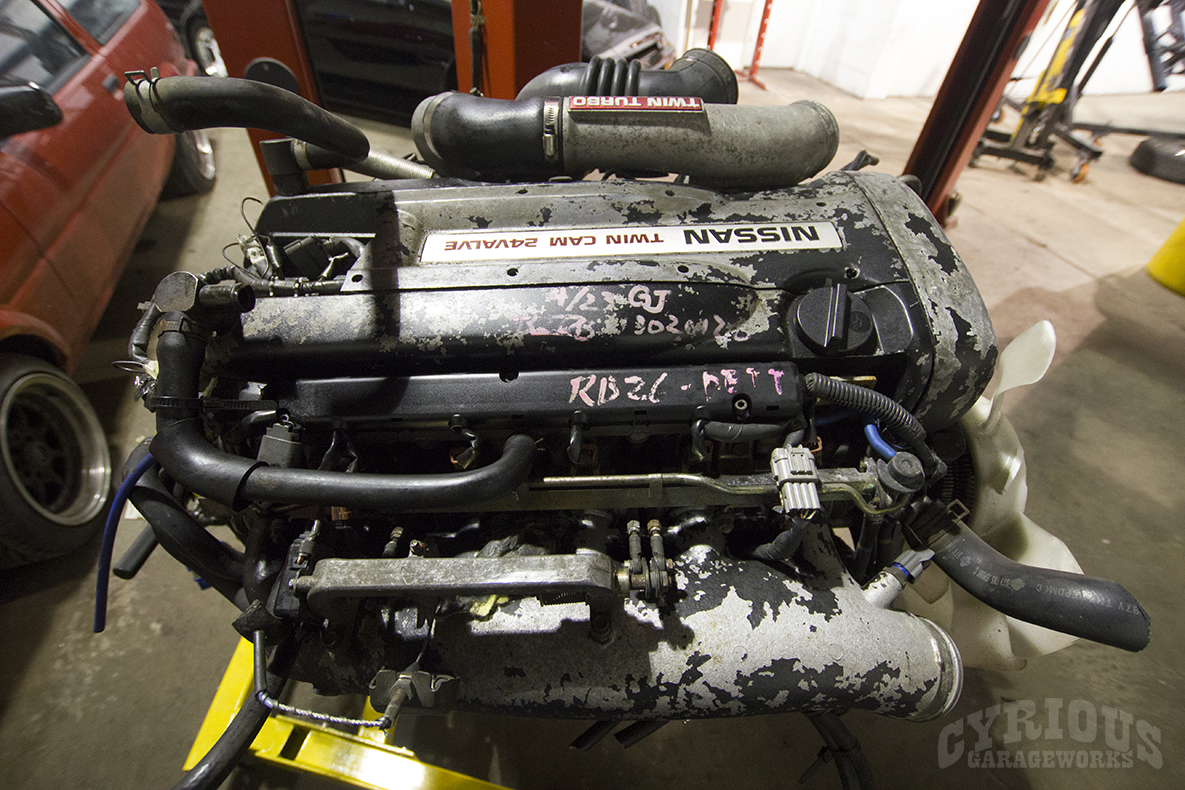

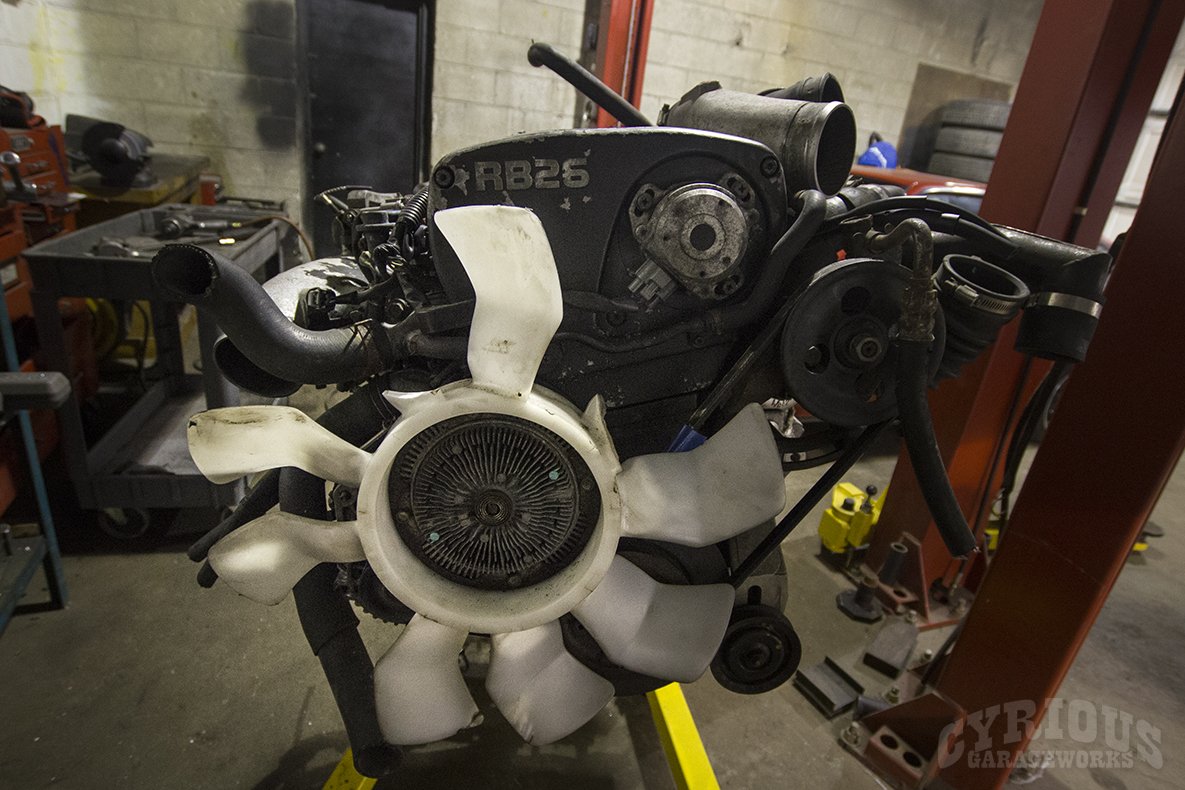

…she would be getting a power plant upgrade! The RB26 was the first choice of engine for this vehicle, as the original motor was going to be just a bit too ho-hum for this build, and the RB almost seems like an evolved version of the L24 that we pulled out to begin with, so it’s really a great match for this car!

img_0488img_0510img_0546img_0609img_0498img_0522

Though this project is a restoration, there’s still a little bit of modification to be done to make this 240Z as unique as it can be. The bumpers stick out quite a bit on the car from stock, and the the front lip doesn’t fit perfectly on the car. We would need to pinch the bumpers in to make them sit nice and flush to the body, and make adjustments to the front lip to make it fit a bit more properly. On top of that, we decided that with the new engine and the layout that we had mapped out under the hood, it was no longer necessary to keep the stock “service doors” that are beside the hood. Even a detail like that will definitely be a stand out feature on this vehicle!

img_0530

img_0533img_0536We came to realize, after some thorough research, that we were going to be unable to find a reproduction rear bottom quarter, and buying another car wasn’t really the most practical way to obtain it, so it was decided that we would just fix the section that was already there.

img_0537

img_0539

img_0541img_0543img_0554img_0561img_0565When it comes to rust, the best solution is to cut it all out and replace it with new metal when the option is available, so that’s what we did here!

img_0567img_0589img_0596Modifying chrome components is no easy task. The finish must be absolutely perfect to have the chrome look good at the end of it all!

[image-comparator left=”http://cyriousgarageworks.com/wp-content/uploads/IMG_0837.jpg” right=”http://cyriousgarageworks.com/wp-content/uploads/IMG_0843.jpg” width=”100%” classes=”hover”][/image-comparator]

img_0851Clean though this body may have been from the beginning, it still needed a little bit of help to be perfect. You’ll often see cars with great paint jobs that have weird looking high and low spots because the car didn’t have proper body work done ahead of time. This step is absolutely integral in achieving the mirror shine finish after the paint job is done.

img_3263 img_3266To give the car that added sporty touch, a custom removable half cage was built.

img_3421

img_3464The 240z comes from the factory with a pair of storage compartments located behind the front seats. The compartments are kind of small and not really useful for anything, so we decided to repurpose one of them to hold the battery, adding to the clean look under the hood.

img_3466 img_3468 img_3482As we always say, it’s not a Cyrious build if it doesn’t have a full custom exhaust. Not only will this car look good, it’s gonna sound pretty badass too!

img_5182 img_5319 img_5348As with any used engine obtained from the importers, this one would need a thorough cleaning and rebuild from the ground up before being put in to its new home.

img_5517Wouldya just look at that? The RB26 certainly looks right at home in the engine bay of a 240z!

We’ll leave it at that before this post gets really long. Keep your eyes peeled for the next installment here at CyriousGarageworks.com!
