Von Taube Motorsports – LS Powered 350z

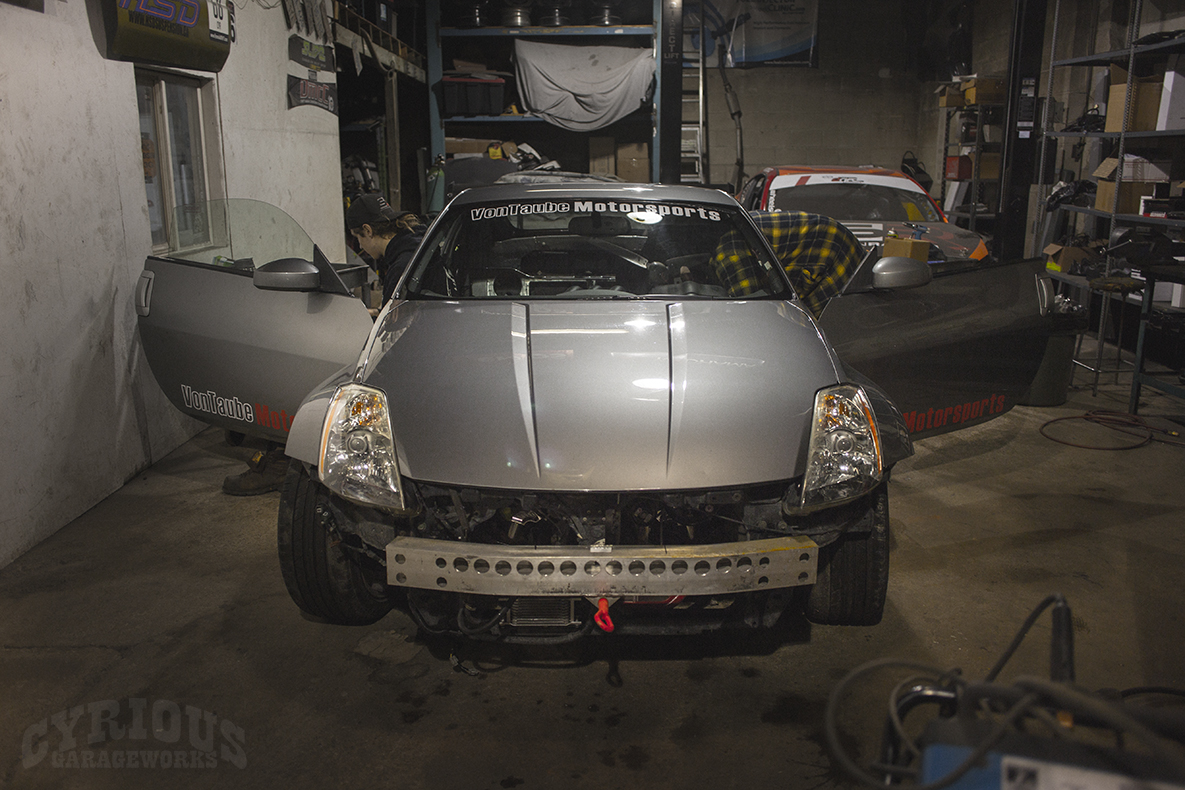

IMG_1421

The Nissan 350z has been a prominent part of the motorsports world since it’s production run began in 2003. In that span of time, the 350Z has been a popular platform both for a street sports car, as well as a dedicated race car. With all that being said, the 350z made for an ideal choice for Eric from Von Taube Motorsports to use as the base for his dedicated track vehicle.

IMG_1613

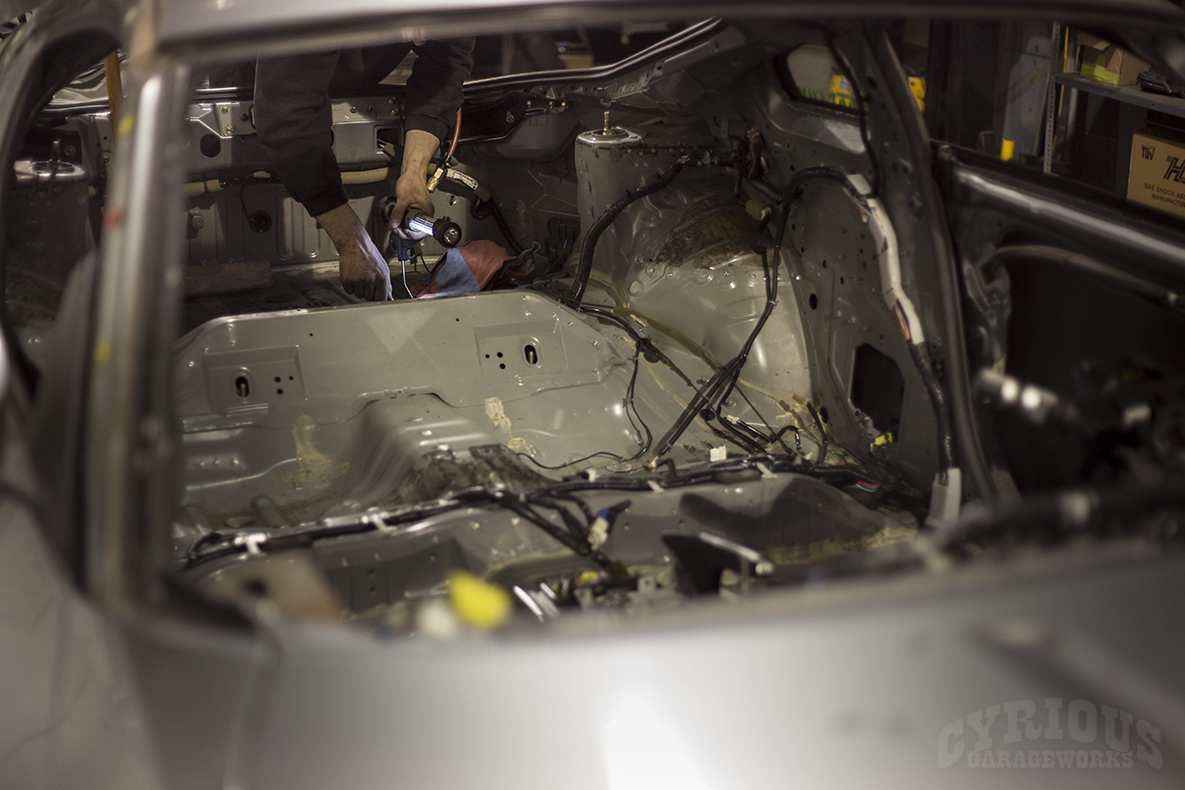

Eric intended on going pretty fast in this machine, meant to be a purpose-built Time Attack vehicle. The first concern, as always, is safety. A full roll cage was to be built and installed to meet various Time Attack competitions’ safety guidelines…but before we could do that, the sound deadening needed to be removed, pictured above.

IMG_1615

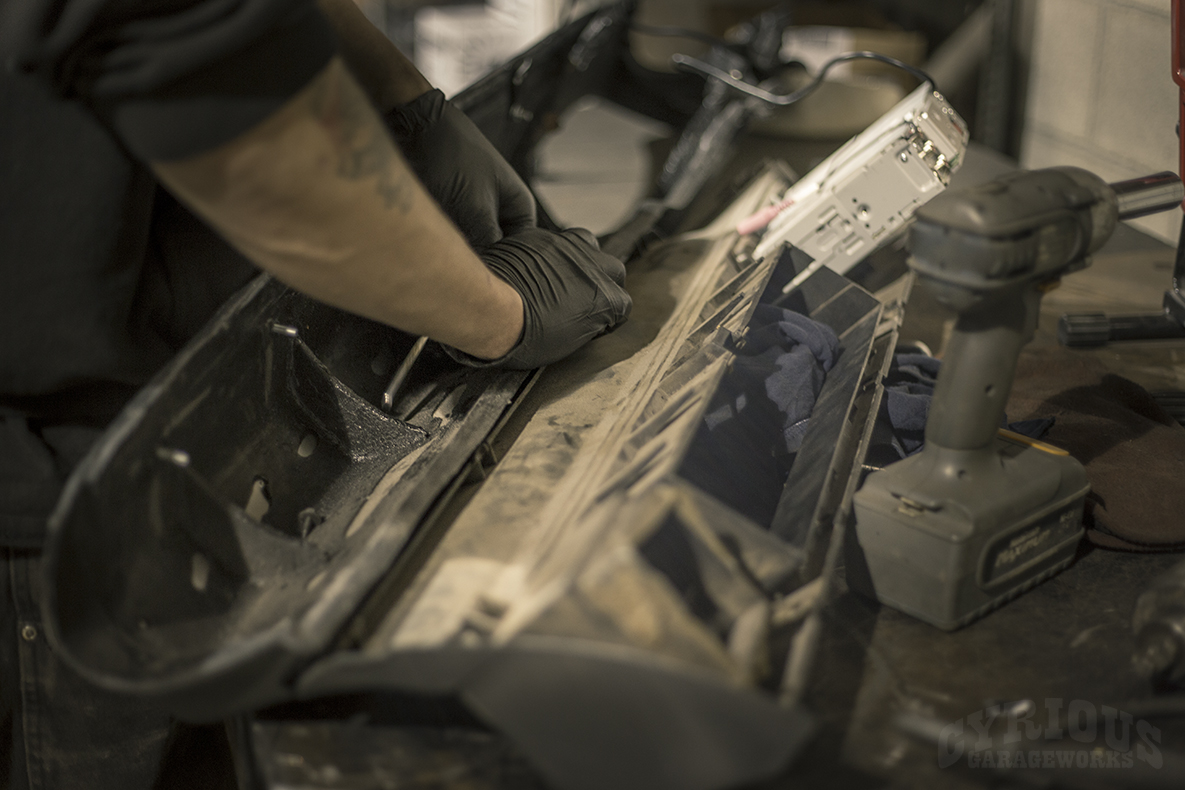

Brad got busy prepping the dashboard to have it mounted to the rollcage tubing, as opposed to the factory equipped dash bar that the car comes with. This may seem like a mostly unimportant step in the process, but it’s worth noting that many racing series in the world require that cars retain their factory dashboards for one reason or another. This can be an expensive issue to rectify for the gung-ho enthusiast that throws his old dashboard in the bin because he thinks a panel of aluminum will be lighter (it isn’t, really) or because he wants to make a sweet custom dash and doesn’t want to be restricted by the confines of a factory dash unit. Moral of the story: no matter how awful your dashboard may be, it’s very likely worth saving it until you know for sure that you don’t need it anymore. It’ll save you from the trouble of finding a used one, shelling out big bucks for a new one; or at worst being unable to find one at all.

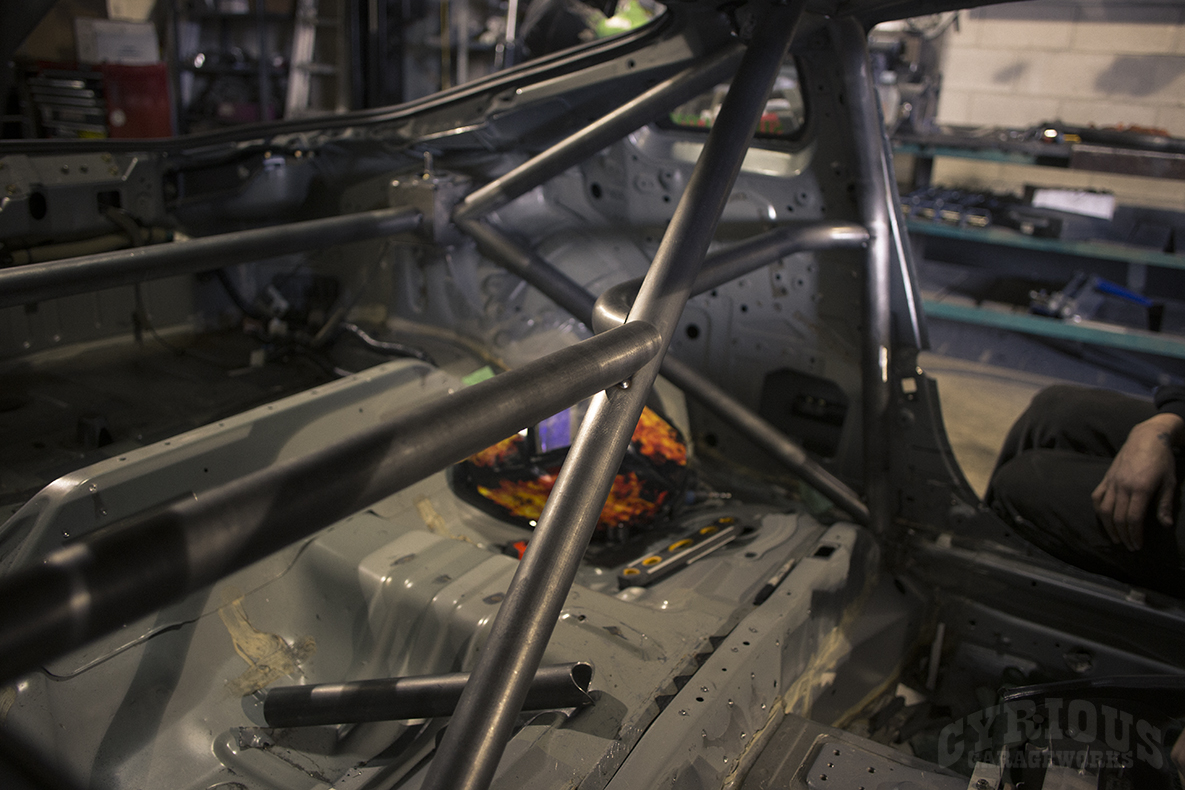

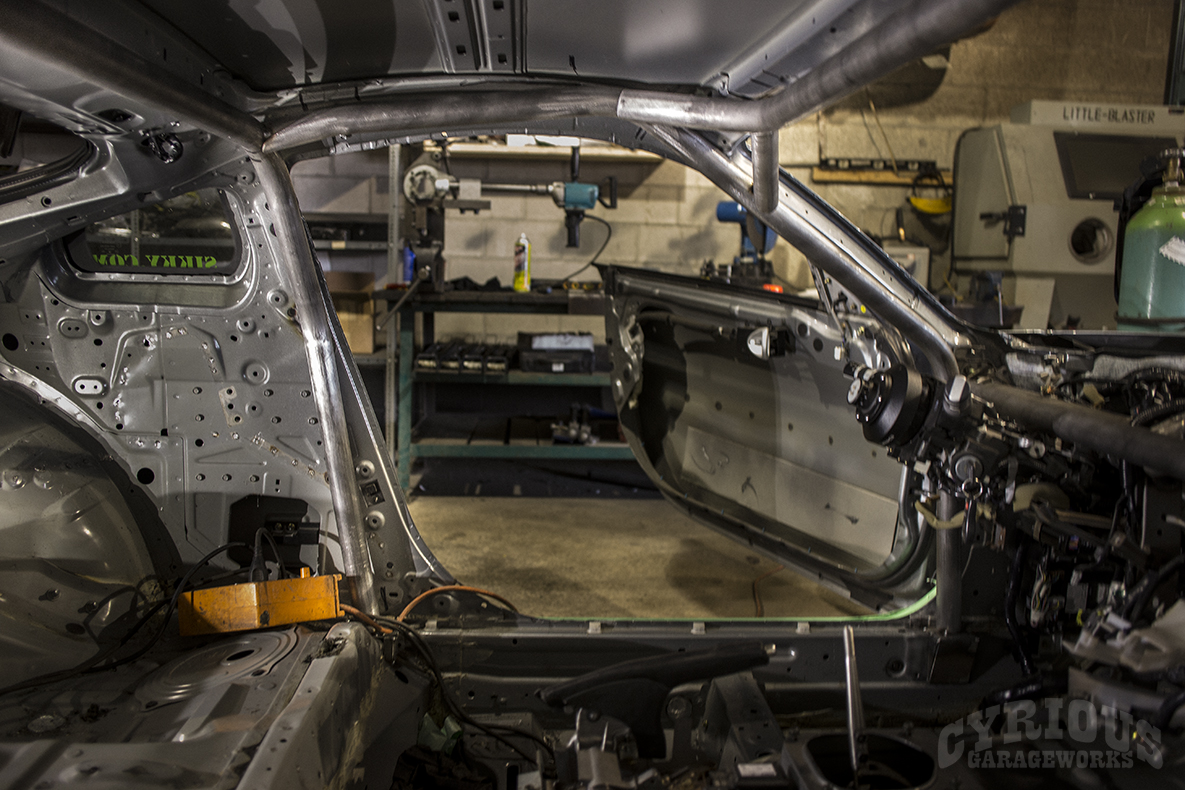

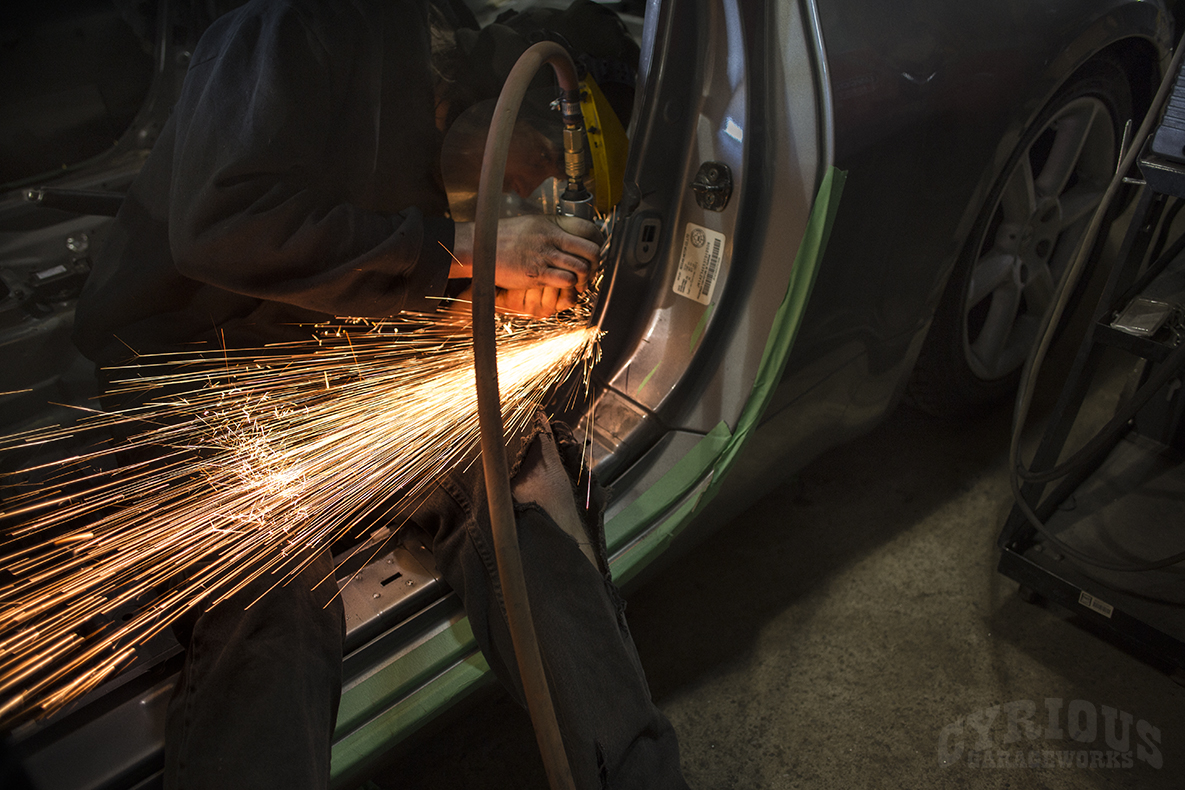

IMG_1692IMG_1696IMG_1707IMG_1709

IMG_1723

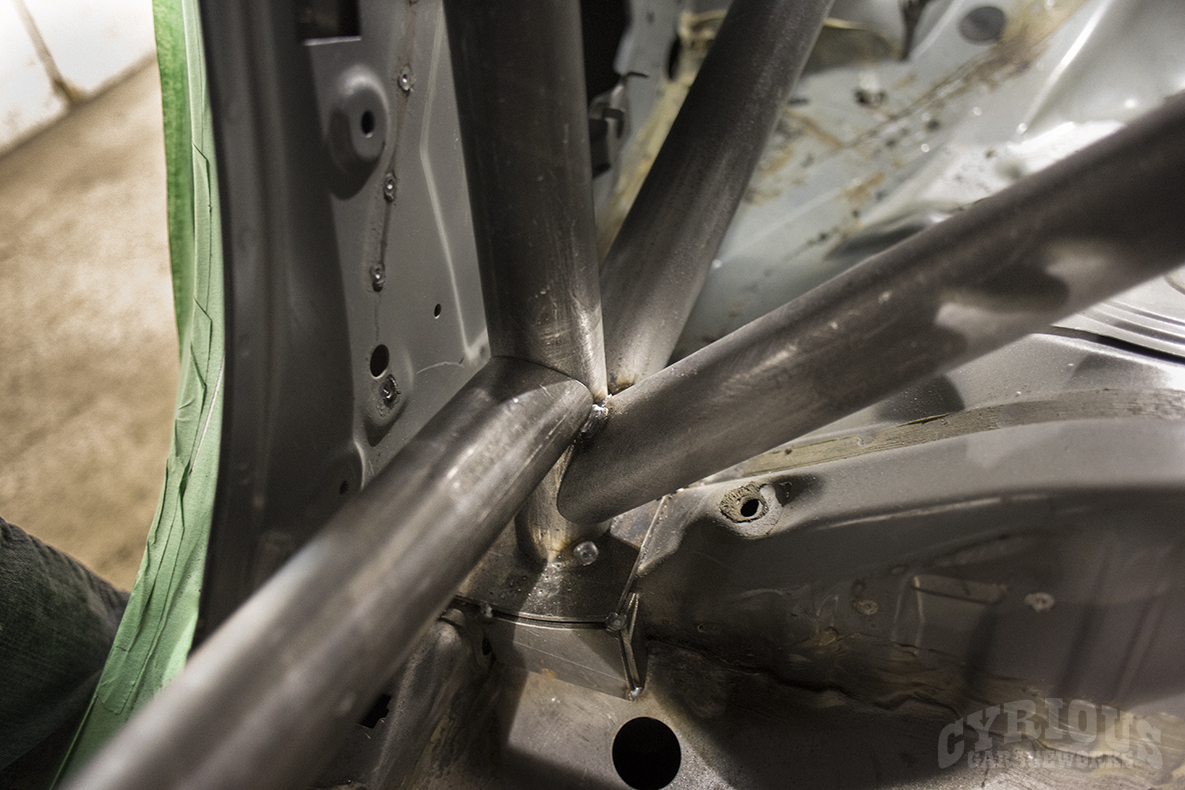

IMG_1732

With roll cage fabrication steaming right along, let’s take a look under the hood!

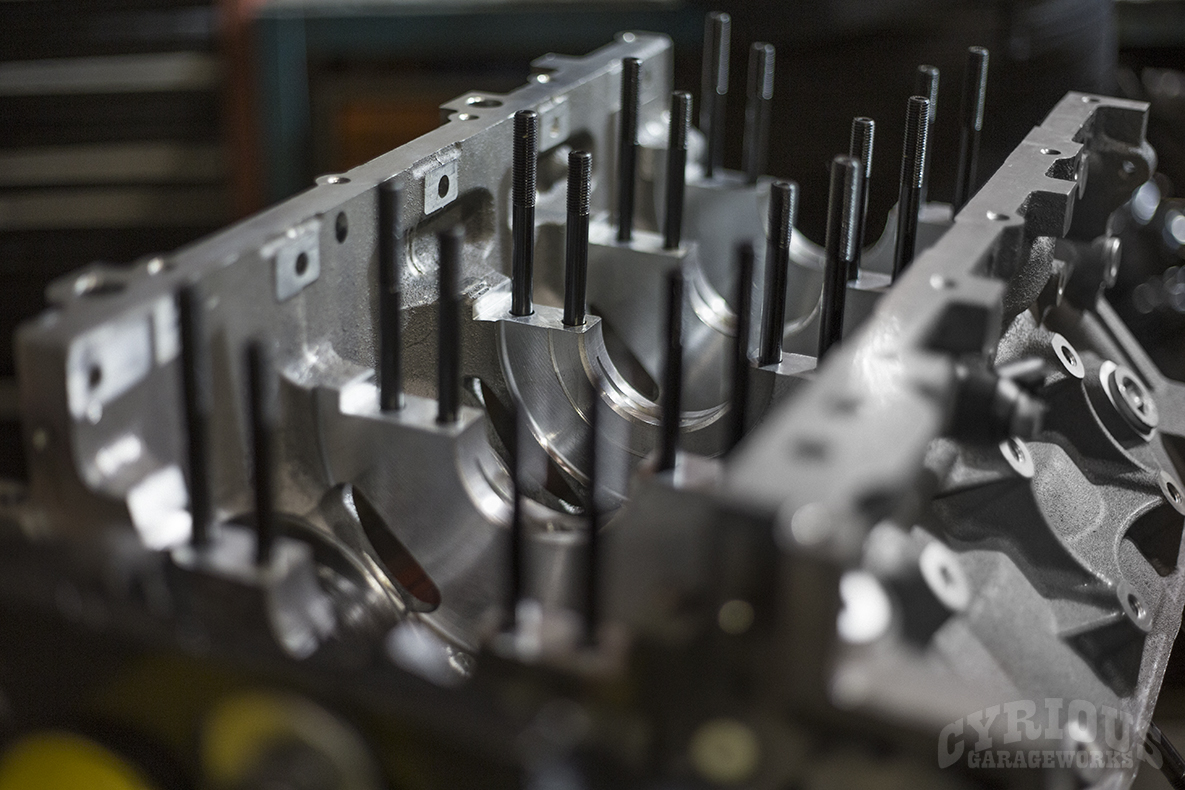

IMG_4280

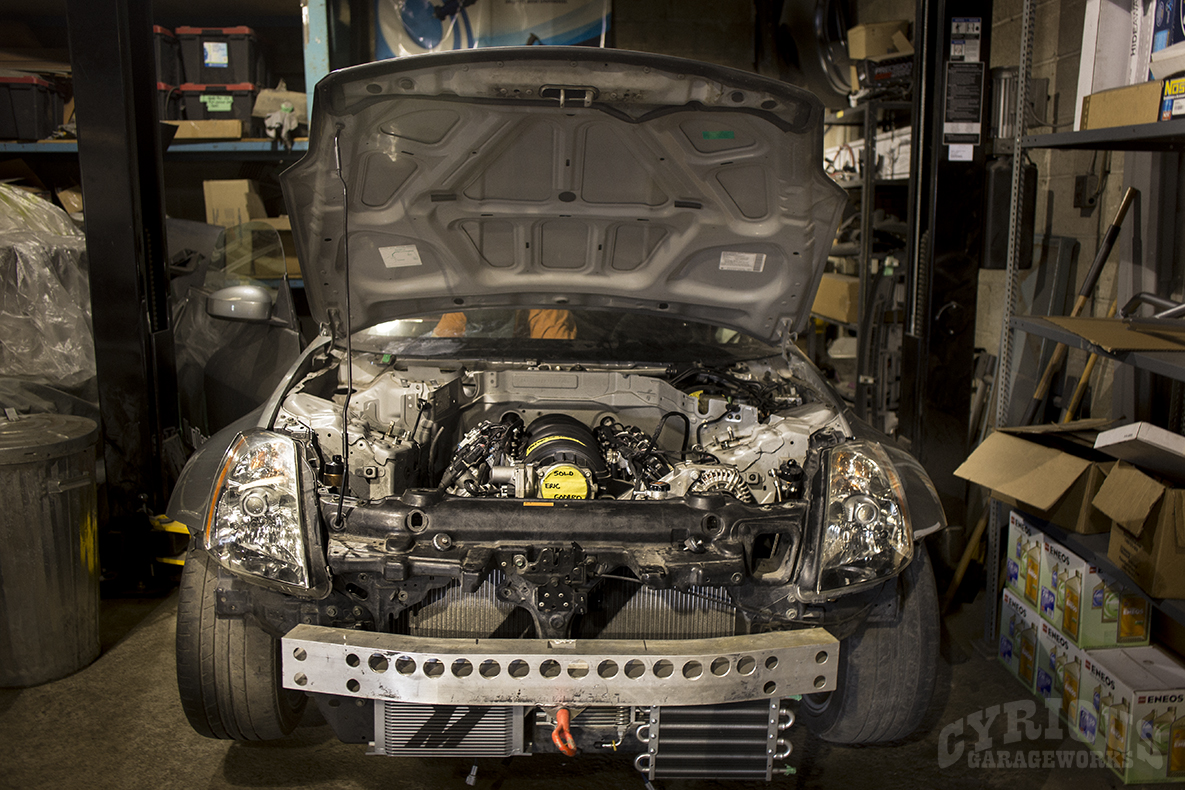

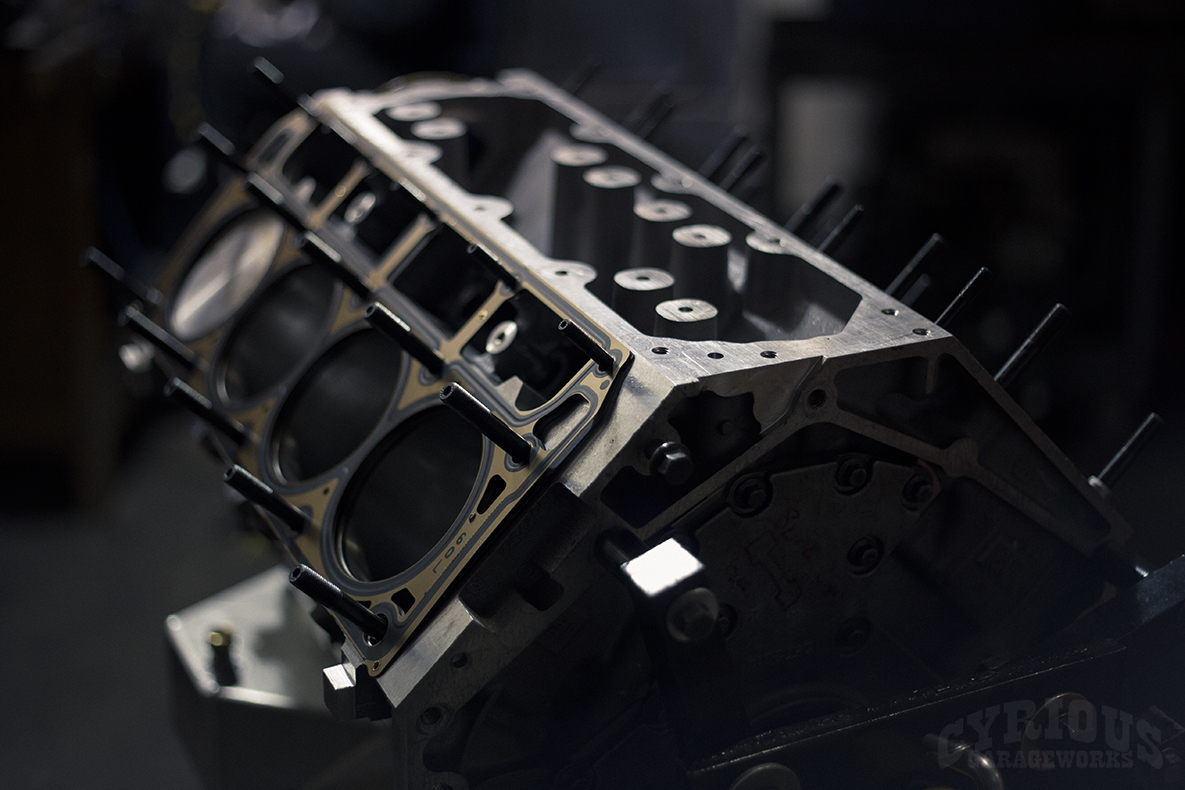

IMG_4306IMG_2260

That ain’t no VQ35! As the title of this post implied, along with getting the full roll cage treatment, this vehicle also received a heart transplant in the form of a Chevy LS2!

IMG_4371 IMG_2309

With the immense amount of heat produced by the LS engine taken into consideration, the heat wrap was applied generously!

IMG_2842

IMG_2845IMG_2853

IMG_2835IMG_2859IMG_2861

IMG_2863IMG_2837

IMG_2839

Knowing that this car would see some heavy cornering as well as some long stints on the track, we installed an Accusump to make sure that oil pressure never drops, even around the tightest, fastest corner imaginable!

IMG_4553IMG_2871For many vehicles, the only solution for saving the weight of the stock fuel tank is to get rid of it altogether and purchase a fuel cell. The fuel tank on the 350z however allows for a more convenient, and better balanced solution: cut the stock tank in half! It works like it used to, and is offset to the weight of the driver on the other side of the car, making for a nicely balanced gas tank!

IMG_2872IMG_2874IMG_2875IMG_4548IMG_4545IMG_4546The addition of Hoosier slicks with a big rear wing will help to keep this car planted on the track!

13007099_1696264653961010_3141815720418268124_n

Keep an eye out for the Von Taube 350z at a race track near you!
